PPGI

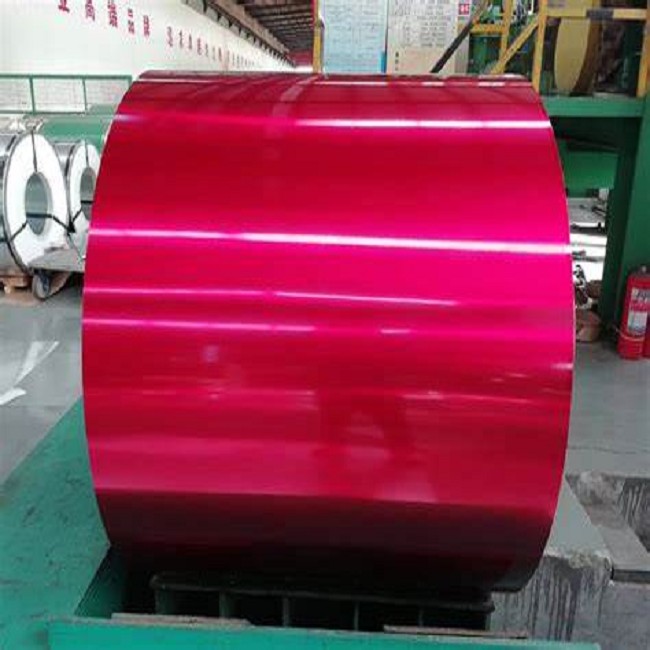

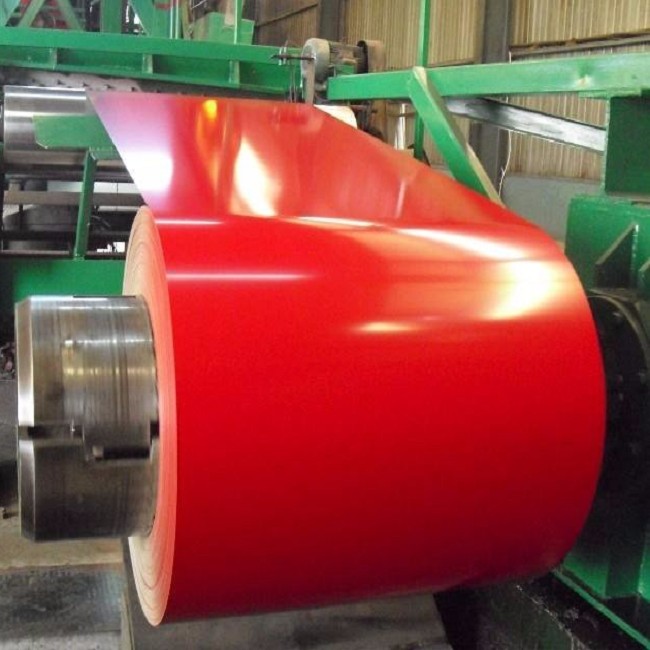

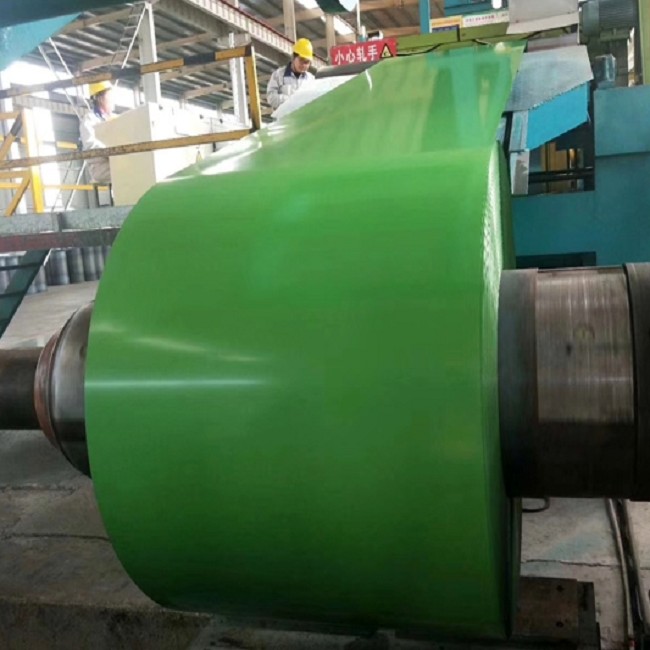

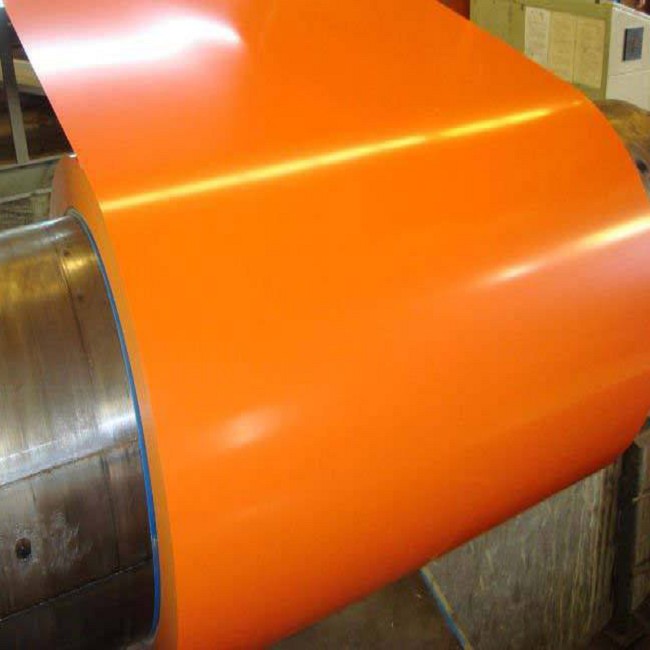

PPGI & PPGL also known as pre-coated steel or color coated steel

coil, It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc.

After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified.

The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed.

The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction,decoration, home appliances, electrical appliances, Furniture industry and transportation industry.

The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified

polyester,polyvinyl chloride plastisol, polyvinylidene chloride, and the like.

Thickness
0.13-1.0mm,Thickness tolerance:±0.02mm
Width
Less than750mm-1250mm,Width tolerance:-0/+3mm
Coil weight
3-6MT
Coil ID/OD
Coil ID:508±10mm ; Coil OD: 900-1200 mm
Paint Coating
15-25um

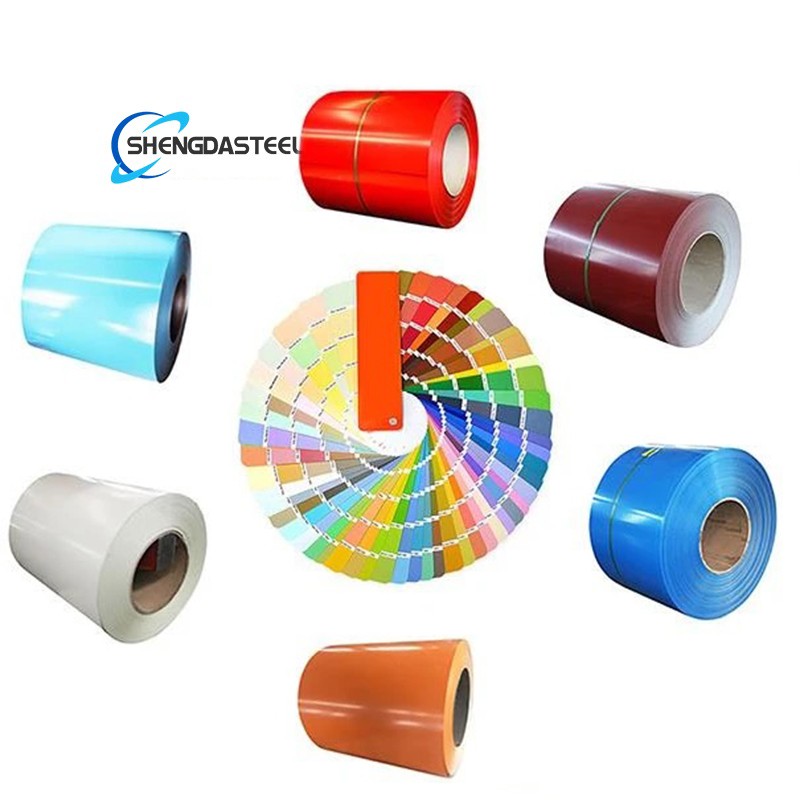

Colors
refer to RAL numbers or customer sample,common colors are sea blue, white grey and bright red.
Surface
